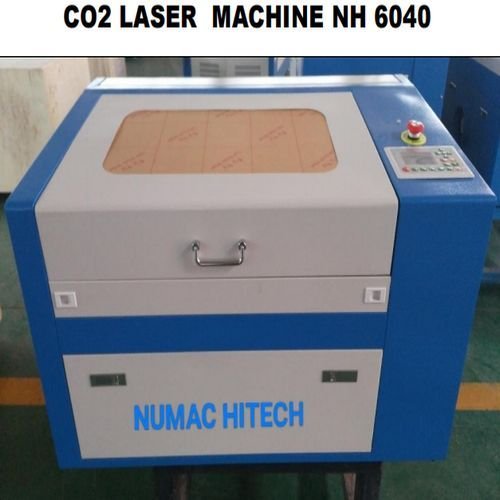

6040 Co2 Laser Cutting Machine

Link Copied

Edit

Product Details

Control System

Digital Control System

Voltage

220V

Cutting Speed

10,000-36000 mm/min

Application

Industrial Cutting Applications

Power

60W

Humidity

5%-95%,and congeal-water removed

Weight

80–120 kg

Working Temperature

0-45°

Specification

Parameter	Specification
Working Area	 600 mm (24”× 400 mm(18”)
Laser System	 CO₂ Glass Laser Tube Laser Power: 80Watts   Wave Length : 10.6Mm  Cooling System: Water Cooling chiller
Mechanical & Drive	 Stepper Motor Leadshine or Equalent  Belt / Rail Tramission System  Positioning Accuracy: ±0.05 mm  Resolution: 1000 -25 DPI
Performance	 Engraving Speed 0 – 500 mm/s  Cutting Speed: 10,000-36000 mm/min  Cutting Thickness: up to 10mm
Control & Software	 Ruida RD Works Controller  Supported Format : .plt,.dst,.dxf,.bmp,.dwg,.al,*las, Support AutoCAD, CoreDraw direct outputting  Compatible Software : CorelDRAW, AutoCAD, Light Burn, RDWorks  Exhaust Fan  Emergency Stop
Electrical & Environment	 Power Supply : AC 220V ±10%, 50Hz  Working Temperature : 0-45℃,  Humidity: 5%-95%,and congeal-water removed  Weight: Approx. 80–120 kg
